Blink500 ProX B2 Ultracompact 2.4GHz Dual-Channel Wireless Microphone System

Blink500 ProX wireless microphone system makes video recording easier through the remarkable sound collection. Ideal for broadcasters, podcasters, vloggers, livestreamers, YouTube creators and filmmakers. As a reliable wireless microphone system, the Blink500 ProX is not only equipped with extraordinary 2.4GHz transmission technology, a bigger OLED screen for vital information, and extra operation time but can also be used out of the box, ensuring content creators have better recording experiences and make their audio pieces into the next level. Allowing you to easily wirelessly mic yourself or someone else, and if you ever need to put mics on two people, you can simply add a second Blink 500 ProX TX wireless transmitter(sold separately) and make it a 2-person wireless microphone.

• Advanced 2.4GHz Transmission and Frequency-Hopping Technology Audio

The Blink500 ProX’s advanced 2.4GHz transmission and frequency-hopping technology enable users to record crisp audio at distances of up to 100 meters for extremely stable operation even in areas with high RF activity.

• Upgraded Function Improvements

Each Blink500 ProX transmitter features a high-quality built-in omnidirectional condenser capsule, plus a 3.5mm TRS input for plugging in a lavalier microphone. Boasting up to 84dB Signal-to-Noise Ratio, 48KHz sampling rate, and 20-20KHz frequency response, it is capable of recording pure and clear sound with barely any background noise. Thanks to 8ms ultra-low latency, users can realize online meetings or online teaching in an easier and more reliable way.

With a 3.5mm headphone jack, the Blink500 ProX receiver supports both real-time and playback monitoring. Not only the audio you record but also the background sound from the phone is presented at the same time. 0-6 level gain control allows you precisely tailor the output to your devices. The RX features a much-desired selectable Mono / Stereo output setting, giving you the ability record each mic to separate channels of camera’s and recorder’s mic inputs, when using an additional TX transmitter (sold separately).

• Wide Compatibility & Long Battery Life

The microphone system can run for 10 hours and the charging case can support another 20-30 hours, the Blink500 ProX is ready to handle a whole day of recording. Additionally, opening the charging case will automatically turn on the TX and RX. Using TRS/TRRS cables, Type-C, or lightning connector RX, the Blink500 ProX can connect to DSLRs, mixers, modern computers, smartphones, tablets, and so much more. The powerful and practical features of Blink500 ProX make it an ideal tool for content creators.

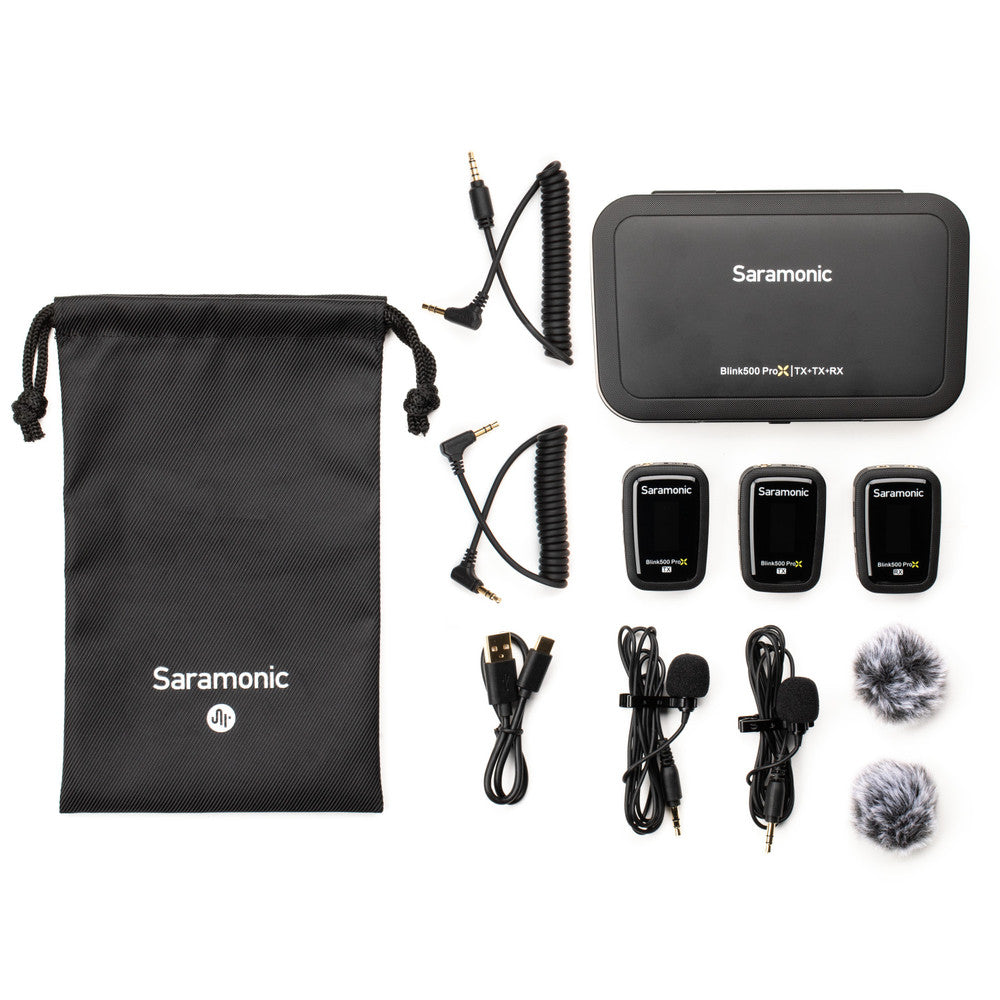

Packing List

Blink500 ProX B2

• 2 x Blink 500 ProX TX Transmitter with OLED Display, Built-In Microphone and Clip
• 1 x Blink 500 ProX RX Dual Receiver with OLED Display, Built-In Clip and Camera Shoe-Mount

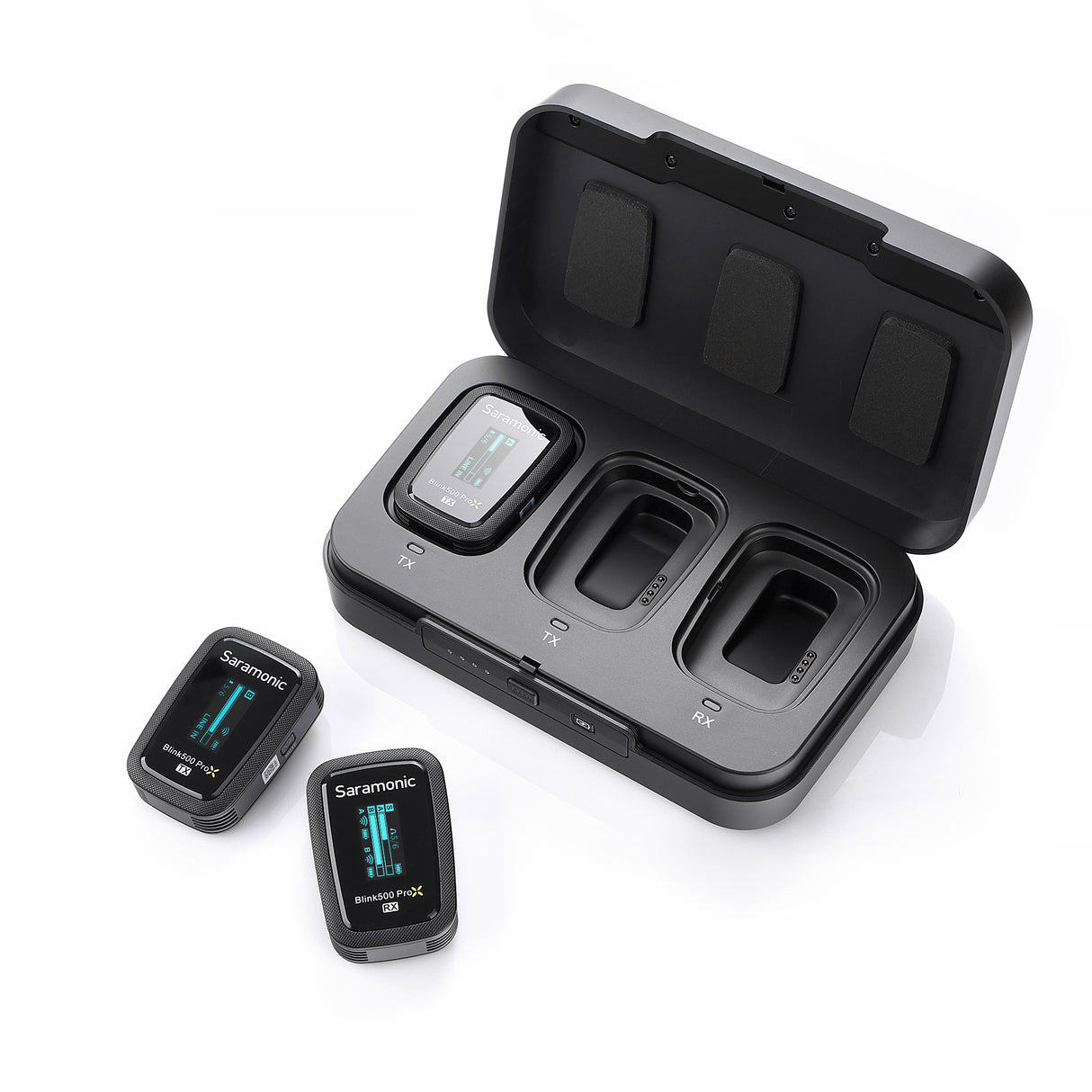

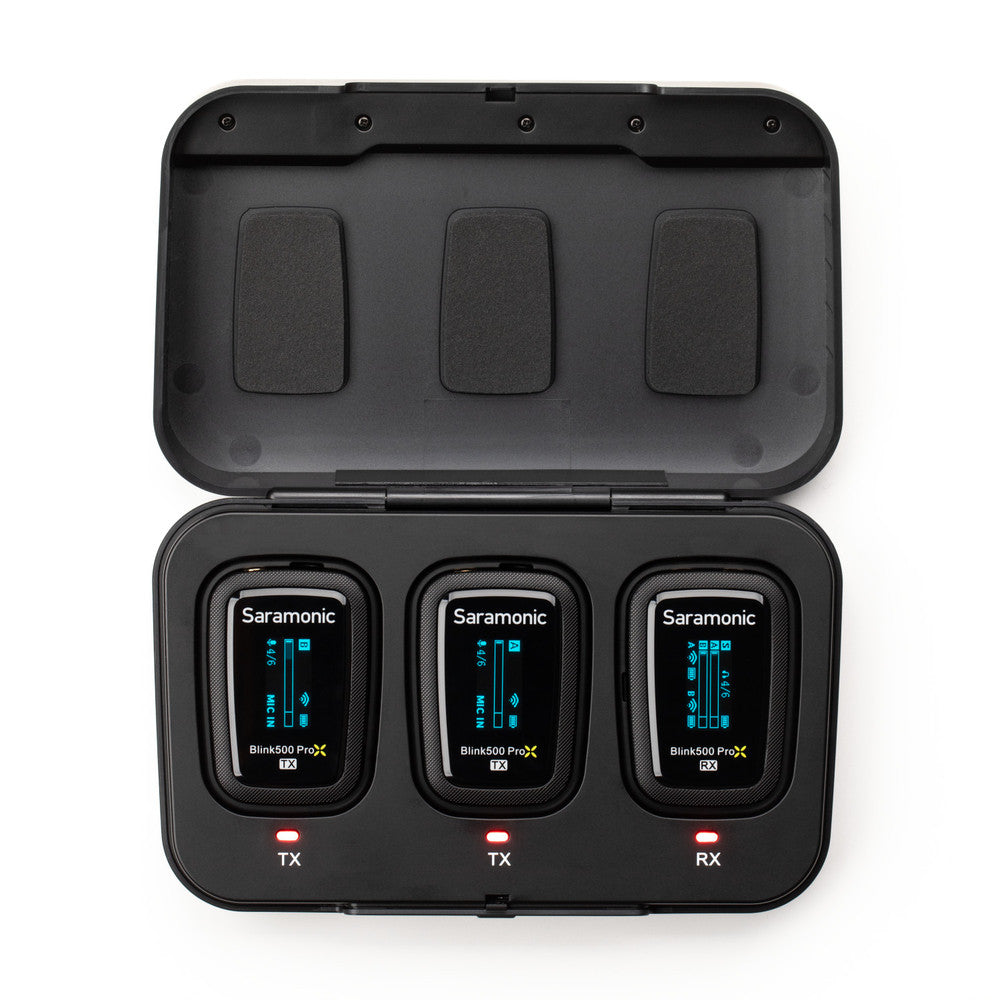

• 1 × Blink 500 ProX B2 Portable Charging Carry Case
• 2 x SR-M1 Omnidirectional Lavalier Microphone
• 2 x Alligator-Style Lavalier Microphone Clip
• 2 x Foam Lavalier Windscreen
• 2 x Furry High-Wind Press-On Windscreen for Blink 500 ProX TX Transmitter
• 1 × Carry Pouch with Accessory Pocket
• 1 x 1’ (30.5 cm) Gold-Plated 3.5mm TRS to TRS Output Cable
• 1 x 1’ (30.5 cm) Gold-Plated USB-A to USB-C Charging Cable

Specification

RX Receiver Specifications

• Reception Type: 2.4GHz Digital Frequency
• Modulation: Digital Modulation
• Antenna: Built-In FPC Antenna
• Operating Range (Without Obstacles): Up to 328' (100m)
• Line Output Connector: 3.5mm TRS
• Output Level: -16.5dBu
• Output Mode Types: Mono / Stereo
• Headphone Output Connector: 3.5mm TRS
• Headphone Output Level: -6dBu
• Frequency Response 20Hz to 20KHz
• Digital Signal Resolution: 16bit / 48kHz
• Signal-to-Noise Ratio: ≥84dB
• Distortion: ≤0.1%
• System’s Voice Delay: ≤8ms
• High-contrast OLED Screen Resolution: 128 x 64 pixels
• Other Functions: Tactile Output Mute Function
• Power Requirements: Built-in Li-ion Battery, USB-C DC 5V or Charging Contact
• Battery Life: Approximately 10-hours
• Battery Specifications: 3.7V / 400mAh
• Weight: 1.08oz (30.5g)
• Dimensions: 2.2 x 1.49 x 0.61” (56 × 38 × 15.5mm)
• Operating Temperatures: 0° to 122°F (0°C to 50°C)
• Storage Temperatures: -50° to 122°F (–10°C to +50°C)

TX Transmitter Specifications:

• Transmission Type: 2.4GHz Digital Frequency
• Modulation: Digital Modulation
• Antenna: Built-In FPC Antenna
• Operating Range (Without Obstacles): Up to 328' (100m)
• RF Output Power: <10mW
• Frequency Response 20Hz to 20KHz
• Reference Audio Input Level: -20~-42dBv (MIC input, 0dB Attenuation)
• Input Connector: 3.5mm Mic In / Line In (Mic with Plug-in-Power)
• Built-in Microphone Polar Pattern: Omnidirectional
• Built-in Microphone Maximum SPL: 106dB
• Built-in Microphone Sensitivity: 39±2dB (Tested at 2V 2.2KΩ)
• Lavalier Microphone Maximum SPL: 120dB
• Lavalier Microphone Sensitivity: 39+/-2dB (0dB=1V/Pa,1kHz)
• Digital Signal Resolution: 16bit / 48kHz
• Signal-to-Noise Ratio: ≥84dB
• Distortion: ≤0.1%
• High-contrast OLED Screen Resolution: 128 x 64 pixels
• Other Functions: Tactile Microphone Mute Function
• Power Requirements: Built-in Li-ion Battery, USB-C DC 5V or Charging Contact
• Battery Life: Approximately 10-hours
• Battery Specifications: 3.7V / 400mAh
• Weight: 1.04oz (29.5g)
• Dimensions: 2.2 x 1.49 x 0.61” (56 × 38 × 15.5mm)
• Operating Temperatures: 0° to 122°F (0°C to 50°C)
• Storage Temperatures: -50° to 122°F (–10°C to +50°C)
